Descriere
SET VIDEOINTERFON COMMAX COLOR FAM

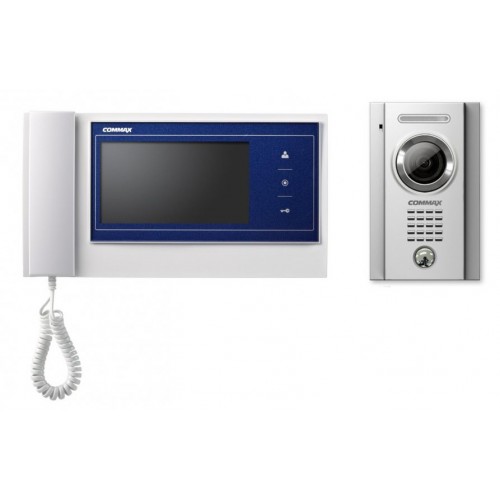

Set videointerfon Commax COLOR FAM format din monitor LCD de 7 inch CDV-70K cu butoane touch si camera DRC-40K; Setul accepta in configuratie, maxim 2 camere + 2 monitoare + 2 extensii audio DP-4VHP. Camera color Commax DRC-40K are o carcasa metalica si montajul este aplicat.
Caracteristici CDV-DRC-40K:
- Monitor color LCD de 7 inch
- Butoane touch
- Montaj aplicat
- Cablare: 4 fire – camera, 4 fire – interfon audio
- Alimentare: 100-240VAC, 50/60Hz
- Consum: standby: 4.5W / max. 16W
- Dimensiuni (latime x inaltime x adancime): 305 x 166 x 49 mm
- Compatibil cu: DP-4VHP
Caracteristici DRC-40K:
- Senzor de 1/4 inch C-MOS
- Carcasa metalica
- Distanta: 50 m,
- Montaj aplicat
- Alimentare: DC12V
- Maxim 2 camere pe sistem
- Cablare pe 4 fire
- Sensibilitate: 0.1 Lux
- Unghi de vizualizare: 75 grade Orizontal, 55 grade Vertical
- Dimensiune: 96 x 154 x 31 mm
- Greutate: 400 g
- Temperatura de functionare: de la -10 pana la +40 grade Celsius
FEATURES
-
7 INCH WIDE LCDMonitor visitors via 7 inch wide display LCD. -
VIVID DISPLAY ANDIt leads the world color video phone markets providing undistorted clear view and outstanding quality. -
LED BACKLIGHTProvide vivid pictures by utilizing LED backlight.
FUNCTION
- 7 inch TFT LCD screen
- Video talk and door lock release enable (both individual and public entrance)
- Support 2 Monitor, 2 Camera and 2Interphones
- PAL/NTSC convertible
SPECIFICATION
- Power source
- AC 100-240V, 50/60Hz
- LCD size
- 7 inch wide color LCD
- Mount type
- Surface-mounted type
- Operating temp.
- 0℃~40℃
- Wiring
- Door camera: 4 wires(Polarity) Interphone: 4 wires(Polarity)
- Distance
- Door camera: 50m(0.65Ø) Interphone: 20m(0.65Ø)
- Consumption
- Max.16W/standby 3.9W
- Dimension(mm)
- 311(W)×168(H)×32(D)
WIRING DIAGRAM
